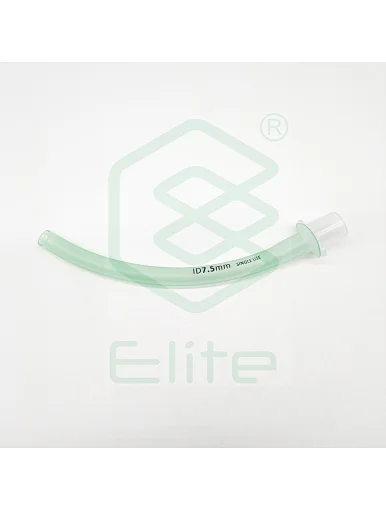

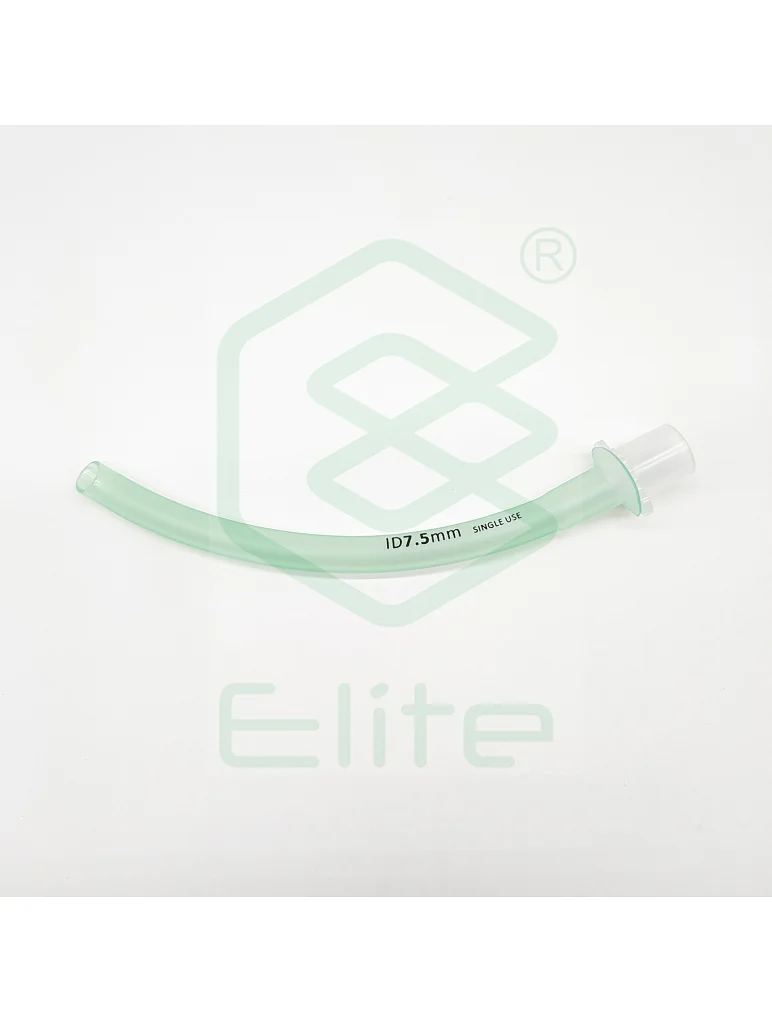

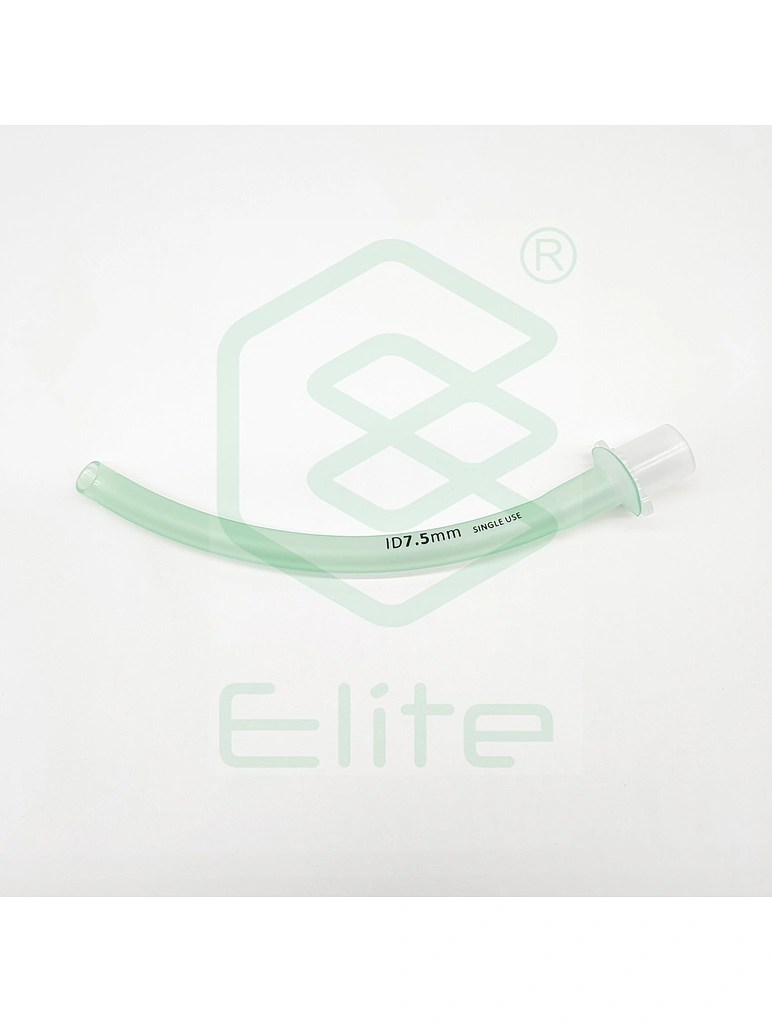

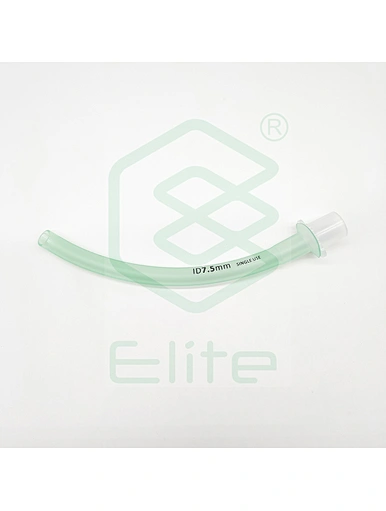

Nasopharyngeal Airway Sterile Medical Grade PVC For Hospital Use

Nasopharyngeal Airway Sterile Medical Grade PVC For Hospital Use
EL0611
By air or sea
China
- Medical grade pvc

- Size: Fr12~Fr36

- EO sterile

- Shelf-time: 5 years.
Quantity
 Introduction

A nasopharyngeal airway device (NPA) is a hollow plastic or soft rubber tubes that a healthcare provider can utilize to assist with patient oxygenation and ventilation in patients who are difficult to oxygenate or ventilate via bag mask ventilation, for example. NPAs are passed into the nose and through to the posterior pharynx.

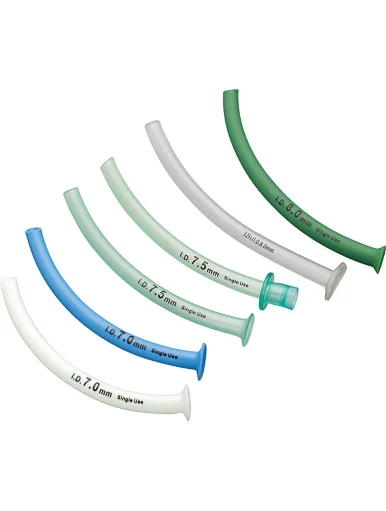

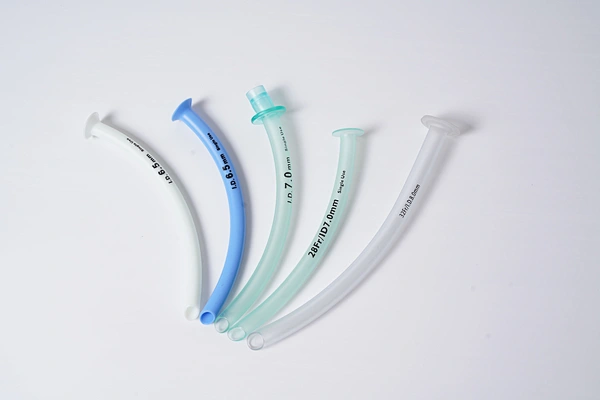

 Features
- Beveled tip.
For nasal airway management.
Smooth surface for easy insertion.

- Trumpet type
Trumpet flange can be with standard 15mm fitting.

- Thickened type
Thickened flange and trumpet flange are designed to prevent tube slipping into the nasal airway.

- Slidable type
Slidable rings are designed to adjust depth of the tube for more comfort while also prevent tube from slipping the nasal airway beyond the desired depth.


 Cautions
1. Sterile unless package is opened and damaged.

2. Store in clean dry conditions away from light.

3. For single use only.


 Package
- Individual pack


 Specification


REFMeterialSizeID/ODLength
EL061101PVCFr164.0mm/5.5mm105mm
EL061102PVCFr184.5mm/6.2mm110mm
EL061103PVCFr205.0mm/6.9mm115mm
EL061104PVCFr225.5mm/7.5mm125mm
EL061105PVCFr246.0mm/8.2mm135mm
EL061106PVCFr266.5mm/8.8mm145mm
EL061107PVCFr287.0mm/9.6mm150mm
EL061108PVCFr307.5mm/10.2mm160mm
EL061109PVCFr328.0mm/10.9mm175mm
EL061110PVCFr348.5mm/11.5mm185mm
EL061111PVCFr369.0mm/12.1mm190mm
EL061112PVCFr123.0mm/4.2mm72mm
EL061113PVCFr143.5mm/4.9mm85mm
