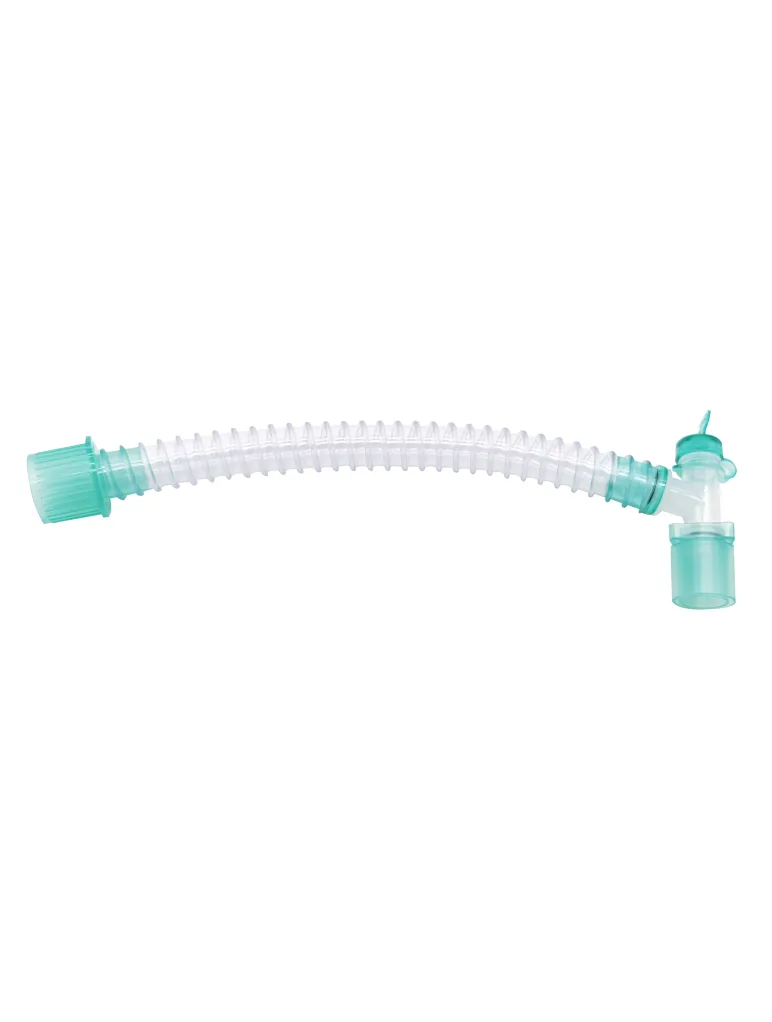

Catheter Mount Disposable Corrugated Breathing Circuit With Swivel Connector

Catheter Mount
Catheter Mount Disposable Corrugated Breathing Circuit With Swivel Connector
EL0640
By air or sea
1 piece
China
- Medical grade material

- Size: 22F/15M or 15M

- Diameter of 15mm

- Length of 15cm
Quantity
 Introduction

Connect the circuit end of this Catheter Mount to the Y connector of breathing circuit to extend the length. Connect the Patient end of this Catheter Mount

to anesthesia Mask, laryngeal mask airway, or endotracheal tube.

 Features
- Disposable catheter mount with swivel connector.

- Suitable for use with anesthesia, breathing and resuscitator device.


 Cautions
1. Do not reuse.

2. Do not store at extreme temperature of humidity.

3. Dispose of this product after use as per hospital.


 Package
- Individual pack

 Specification


REFSpecification
EL064001φ15mm, 15cm corrugated tubing with double swivel connector, 22F/15M connector
EL064002φ15mm, 15cm corrugated tubing with double swivel connector, 15M connector
EL064003φ15mm, 15cm smoothbore tubing with double swivel connector, 22F/15M connector
EL064004φ15mm, 15cm smoothbore tubing with double swivel connector, 15M connector
EL064005φ15mm, 15cm expandable tubing with double swivel connector, 22F/15M connector
EL064006φ15mm, 15cm expandable tubing with double swivel connector, 15M connector
